To be done…
@source https://lidaxian121.github.io/posts/fuzz/

Example

// gcc test.c -o test
#include <unistd.h>

int main() {
    char input[8] = {0};
    read(STDIN_FILENO, input, 8);
    if (input[0] == 'A' && input[1] == 'B') {
        *((unsigned int *)0) = 0xdeadbeef; // crash
    }
    write(STDOUT_FILENO, input, 8);
    return 0;
}

# fuzzer.py
import subprocess

target = './test'
inps = ['AA', 'BB', 'BA', 'AB']

for inp in inps:
    try:
        subprocess.run([target], input=inp.encode(), capture_output=True, check=True)
    except subprocess.CalledProcessError:
        print(f"bug found with input: {inp}")

>>> bug found with input: 'AB'

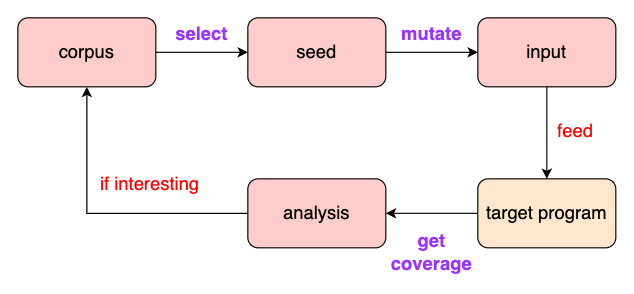

fuzzing process

// gcc test.c -o test
#include <unistd.h>
#include <stdio.h>

int main() {
    char input[8] = {0};
    read(STDIN_FILENO, input, 8);

    if (input[0] == 'A') {
        puts("AAA");
        if (input[1] == 'B') {
            puts("BBB");
            if (input[2] == 'C') {
                *((unsigned int*)0) = 0xdeadbeef; // crash
            }
        }
    }
    return 0;
}

# fuzzer.py
# python3 fuzzer.py >> output.txt
import subprocess
import random

target = './test'
inps = ['A', 'B'] # corpus
count = 1

while True:
    inp = inps[0] # select a seed from corpus
    inp += random.choice(['A', 'B', 'C']) # mutate
    del inps[0]
    count += 1

    try:
        comp = subprocess.run([target], input=inp.encode(), capture_output=True, check=True)
        if comp.stdout != b'': # has some output
            inps.append(inp) # add to corpus
        print(f"inp: {inp}, inps: {inps}", end='\n', flush=True)
    except subprocess.CalledProcessError:
        print(f"inp: {inp}, inps: {inps}", end='\n', flush=True)
        print(f"bug found with input: '{inp}'")
        break

    if count % 100 == 0 or len(inps) == 0: # periodically reset corpus
        inps = ['A', 'B']

inp: AB, inps: ['B', 'AB']
inp: BC, inps: ['AB']
inp: ABC, inps: []
bug found with input: 'ABC'

The output can be very long (a thousand lines) or very short (3 lines). WOW

The quality of a fuzzer depends on:

Selection of seeds: the quality of corpus
Mutation: the efficiency of random variation
Coverage: the overhead of the implementation method

AFL (American Fuzz Loop)

Two fuzz approaches of AFL

For open-source software, instrument it directly during compilation
For close-source software, use QEMU to fuzz the byte code

Instrumentation (插桩)

While ensuring the logical integrity of the program, make the program output some logs to collect the status during runtime

int test_var = 0;

// original
void b() { ...; }
void a() { ...; }

// instrumented
void b() { printf("test_var: %d\n", test_var); ...; }
void a() { printf("test_var: %d\n", test_var); ...; }

example

int had_exec[100] = {0};

void a() {
  had_exec[0] = 1;
  // ...
}

void b() {
  had_exec[1] = 1;
  // ...
}

void c() {
  had_exec[2] = 1;
  // ...
}

int main() {
  // ...
  if (had_exec[0]) {
    puts("function `a` had been called");
  }
}

demo

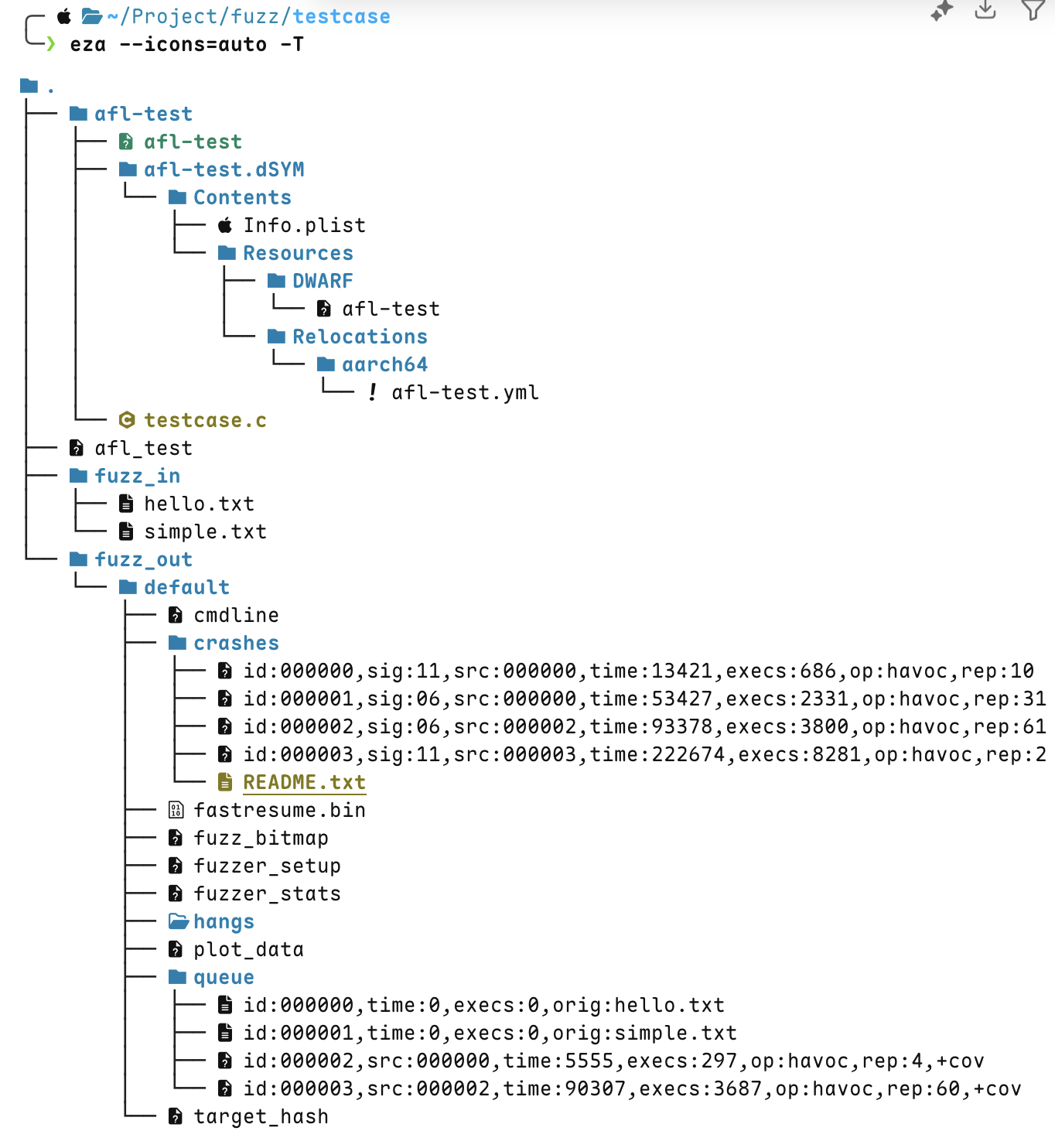

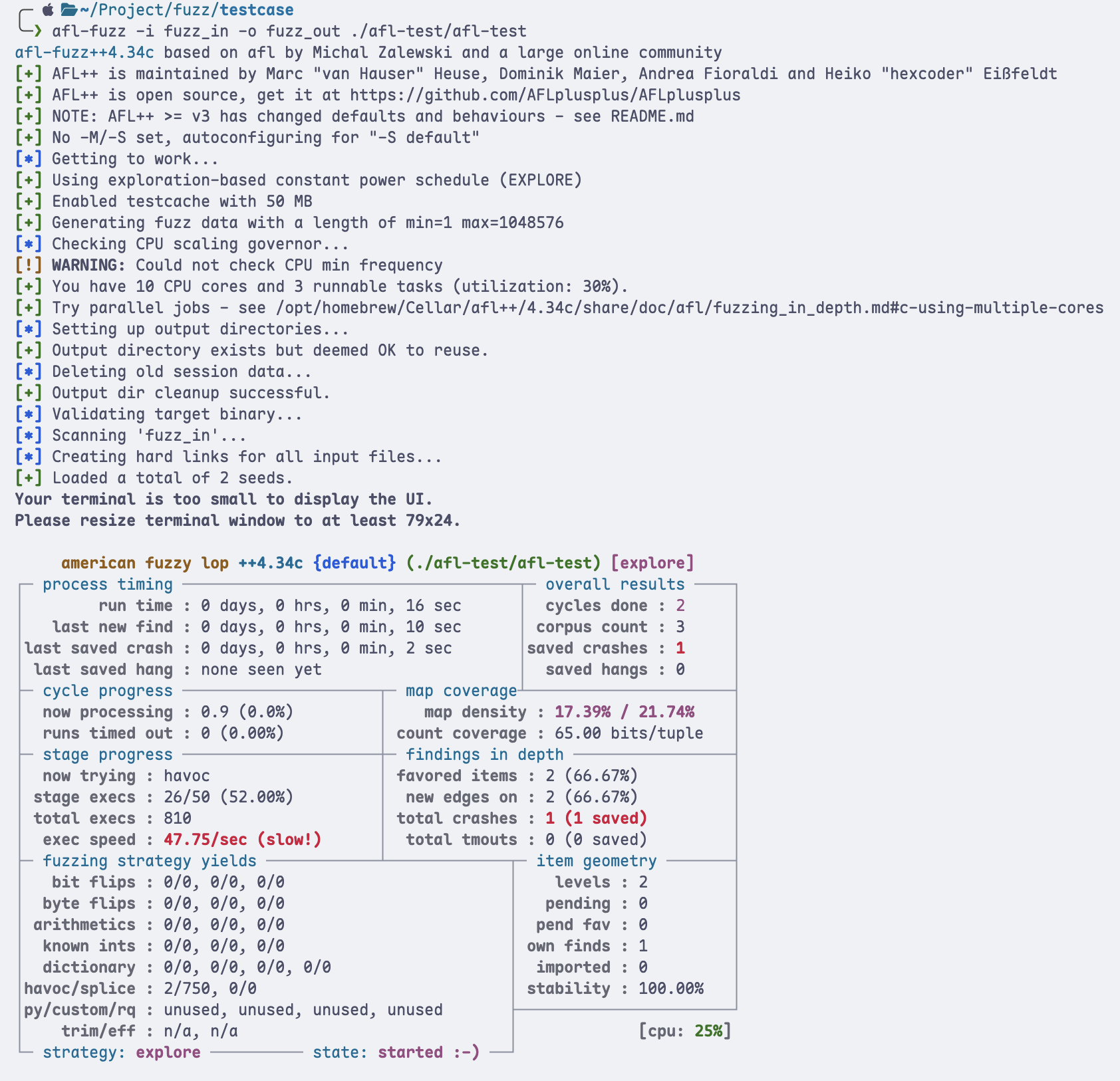

In addition to the target program, you also need to prepare the copus folder fuzz_in and the folder fuzz_out for storing the fuzz results. Put some random text in the former, and leave the latter empty.

// afl-gcc -g -o ./afl-test/afl-test ./afl-test/testcase.c
#include <stdio.h>
 #include <stdlib.h>
 #include <unistd.h>
 #include <string.h>
 #include <signal.h>
 int vuln(char *str) {
	int len = strlen(str);
   // crash case 1
    if(str[0] == 'A' && len == 66) {
        raise(SIGSEGV);
    }
   // crash case 2
    else if(str[0] == 'F' && len == 6) {
        raise(SIGSEGV);
    } else {
        printf("it is good!\n");
    }
    return 0;
}

int main(int argc, char *argv[]) {
    char buf[100]={0};
  // crash case 3
    gets(buf); // stack overflow vulnerability
  // crash case 4
    printf(buf); // format string vulnerability
    vuln(buf);
    return 0;
}
